• Built specifically for engineering teams but also supports single users.
• Simple yet flexible license options, including floating licenses.
• An iPropWiz administrator can create different configurations of properties for different projects or customers.
• iPropWiz users see only the iProperties you include in the configuration, in a single grid. No more searching through the Inventor tabbed iProperties dialog.
• Optionally rename iProperties to more useful names.
• Provide users with a variety of list types for setting property values.
• Special list types enable you to drive property values based on part material, or the value of a model parameter.
• New!  Allow users to select multiple values from a list.
• New!  Tree based lists include a search tool.
• Easily create property expressions, or extract text from another property value.
• Export and format physical property values, including model extents relative to a user defined coordinate system.

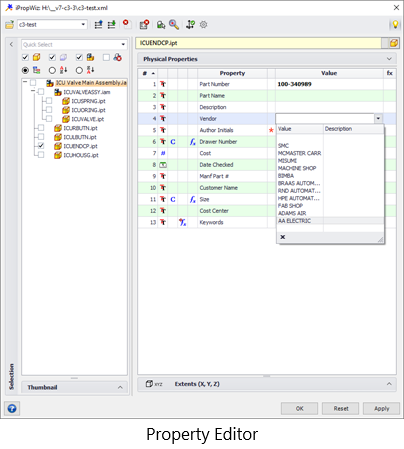

• The modeless Property Editor available while you work in Inventor. Easy keyboard navigation through the available properties increases productivity.
• Flexible tools to ensure required property values are entered.
• New!  Updated UI supports high DPI monitors and text scaling.
• New!  Spell checking for both setup and property entry tasks. This can be controlled on a property by property basis.
• New!  Customize what happens after iPropWiz updates property values with configuration controlled iLogic rules.
• New!  iPropWiz 7.21+: Use the new Minimum Bounding Box option to ensure accurate information on parts not aligned to the coordinate system.
• New!  iPropWiz 7.23+: Manage instance iProperties for assembly components.
• New!  iPropWiz 7.23+: Efficiently manage model state properties in part and assembly documents.
• New!  iPropWiz 7.25+: New administrator tools to track and manage license use.
• Semi-automated add-in updates, no user interaction required.
• Greatly improved context sensitive web based help system. A local help file can be downloaded to replace the online version.
• Support for Autodesk Inventor 2019-2025. See below for more details.

Using iPropWiz

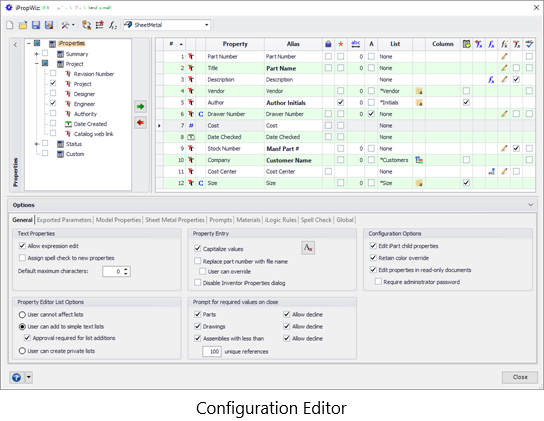

Configuration EditorProperty EditorLists

 Properties

An iPropWiz configuration contains a set of properties for each Inventor document type. You add the properties you want your users to see, and optionally provide a property name alias, add a list, property expression or property extraction rule to each property make it easy to enter a valid value. If you mark a property as required, iPropWiz provides a number of tools to help ensure a value is entered. The grid provides detailed feedback on the state, rules, and settings for each property.

 Options

Configuration behavior is customized in the tabbed Options area of the Configuration editor. You set configuration specific options for capitalizing property values, allowing users to edit property expressions, prompting for required values, spell checking, and other rules that determine how users interact with properties in the Property Editor. You can also define iLogic rule triggers that activate each time a user updates property values from the iPropWiz Property Editor.

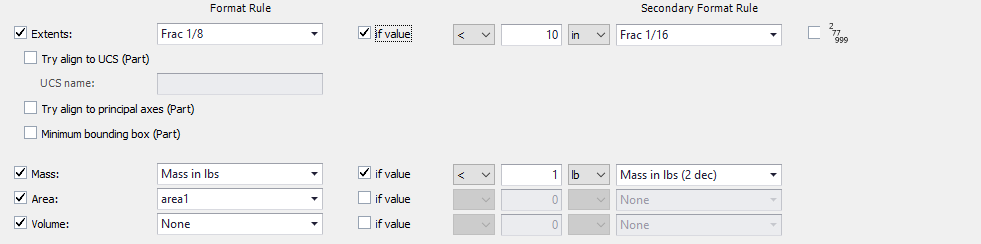

 Physical Properties

Each configuration has rules to control the export and formatting of physical properties such as model extents or mass. Exported physical properties can be conditionally formatted, depending on their current value. Part model extents can be reported with respect to the model's coordinate system, its principal axes, or a user defined coordinate system (UCS). In Inventor 2021 a minimum bounding box extents option is included to provide accurate extents information for parts created using top-down modeling methods such as multi solid body modeling. A variety of sheet metal flat pattern properties can also be exported, including extents and 'through cut' loop lengths. A separate set of ordered extent values can optionally be expported.

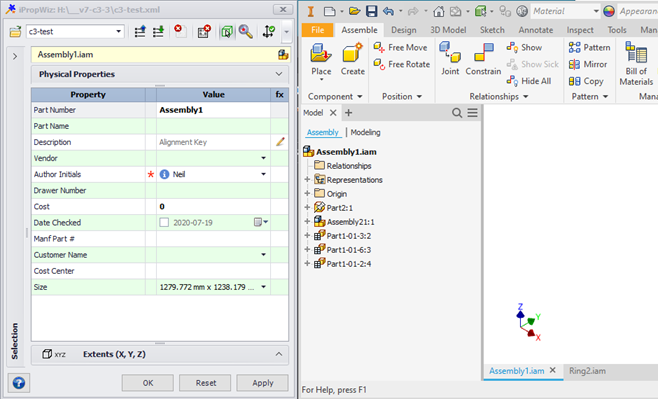

 Layout

Users can control the columns visible in the grid, and they can dock the iPropWiz Property Editor (PE) to the left or right edge of the Autodesk Inventor window, or even place it on a second monitor. For basic property entry the PE can be reduced in width, and quickly expanded to expose the full set of controls. You can also quickly toggle the PE between active and disabled states.

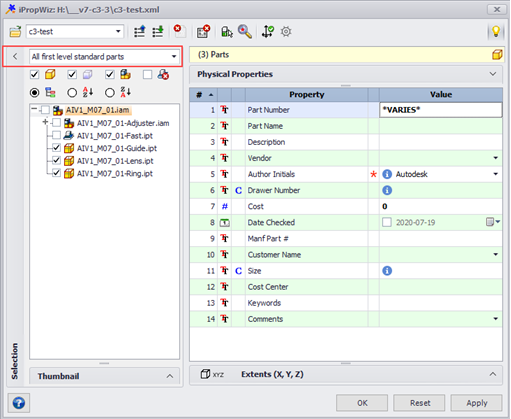

 Selection

When active, the PE automatically updates to display the properties of the active document, or selected document(s) in an assembly or drawing. Selections can be made in the Autodesk Inventor graphics window or browser, or by using the document browser in the iPropWiz Property Editor (PE). The document browser displays all documents referenced in the active document and provides tools to filter and organize documents. The document browser also enables you to make common selections such as 'All sheet metal parts'. When multiple document are selected, properties with different values are noted in the property grid.

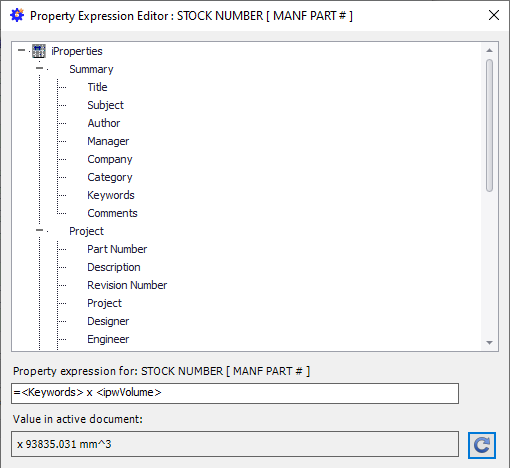

 Property Expressions

If permitted by the current configuration settings, users may be able to create or edit property expressions for some properties. The Expression Editor provides drag and drop expression editing and a preview of the expression value in the current document.

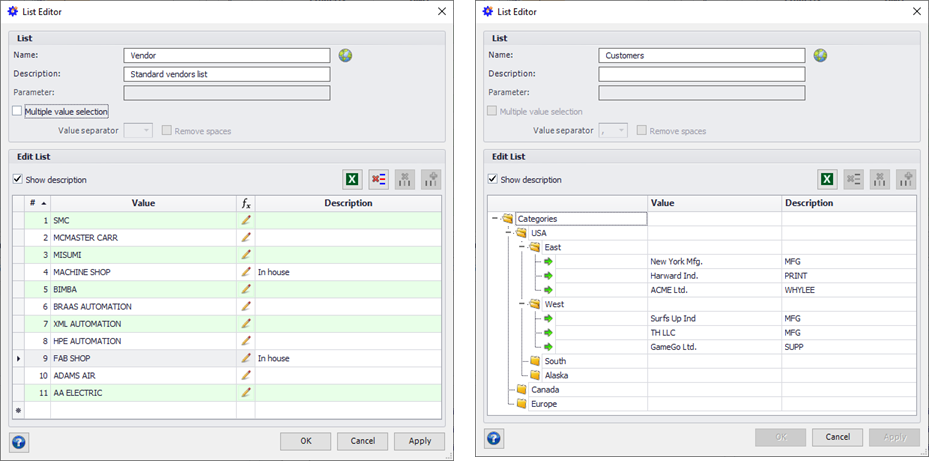

 Creating lists

You can create lists for both numeric and text type properties. A list can be made available to all configurations, or be local to a specific configuration. Simple lists can display a description for each value, and Multi-level Tree lists enable you to organize large lists in an easy to browse structure. All lists feature drag and drop editing, and you can import data for any list from an Excel spreadsheet.

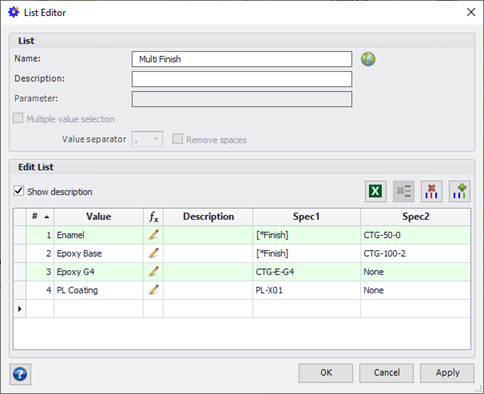

 Multi-property lists

An iPropWiz exclusive, multi-property lists enable users to set values for multiple properties with a single selection. The above image shows the structure of a Multi-Property Text list. The Primary field is assigned to one property, and the two secondary fields (Spec1 and Spec2) are assigned to other properties. Once assigned, a user selects a value from the primary field for the assigned property in the iPropWiz Property Editor. The other properties are assigned values from the secondary fields in the same row of the multi-property list. The secondary field items can either be a fixed value (e.g. CTG-50-0), or a simple text or tree list (e.g. [*Finish]). Other multi-property lists include ones that get their primary value automatically, from the material applied to a part, or the value of a parameter in a model document.

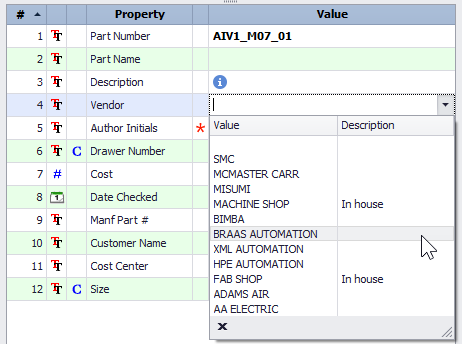

 Using lists

In the Property Editor, the user can select a value from the assigned list. The property can optionally be marked as From List Only, ensuring the property value must come from the list.
