iPropWiz 7.26 ( Inventor 2026 )

Autodesk Inventor 2026 Specific enhancements. (Note: All features in the initial build, 7.26.1.250, are also added to iPropWiz 7.25 for Inventor 2025)

iPropWiz 7 for Autodesk Inventor 2026 has the following enhancements:

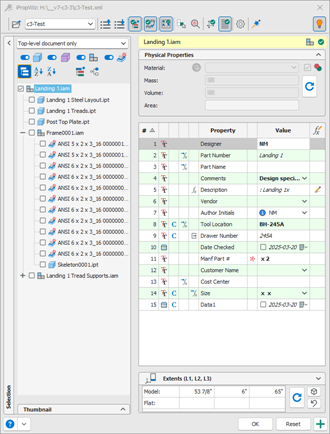

The user interface has been refreshed with a modern Windows 11 based UI. All icons have been converted to vector based images for increased clarity.

Icons in the iPropWiz Property Editor document browser and current selection display better reflect the current display settings (editability, sorting, model state).

Improved user interface consistency for data entry, selection and feedback.

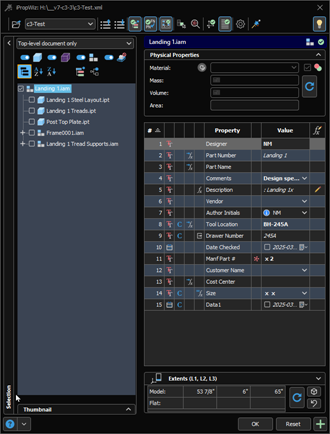

Introduction of a dark user interface theme. The iPropWiz theme automatically follows the current Autodesk Inventor Light/Dark theme.

Note: If you change between Light and Dark themes in Autodesk Inventor you must restart Inventor to update the iPropWiz theme.

Physical property summary for Mass, Area, and Volume when multiple documents selected.

Note: The summary is for the unique selected documents, not the number of selected occurrence of any one document. The values displayed are read-only..

Display the Extents bounding box in the Autodesk Inventor graphics window. This applies to all of the extents options you can set in the active iPropWiz configuration.

Note: Bounding box display is only available for the active edit document. This included the top level document in the Autodesk Inventor browser, and part and sub-assemblies being edited in-place.

Addition of a Minimum Bounding Box option for assembly document extents.

Improved assignment of fields to properties in a multi-property text list. A more reliable method of assigning list-only status to secondary fields that get their value from a list.

Improved creation, editing, and selection from tree based lists.

Recovery of off screen Property Editor. If a user changes their monitor setup, or when Inventor crashes, the current location of the iPropWiz Property Editor (PE) can be corrupted or be located off the users current display setup. If this occurs you can now press the Property Editor button a second time to restore the PE to the current screen.
